Export findings to GitHub Advanced Security

Learn how to export findings to GitHub Advanced Security.

You can export the findings generated by Endor Labs to GitHub Advanced Security so that you can view the findings in the GitHub. Endor Labs exports the findings in the SARIF format and uploads them to GitHub. You can view the findings under Security > Vulnerability Alerts > Code Scanning in GitHub.

Warning
GitHub have several limitations for SARIF files, so you may not be able to experience the full benefits on Endor Labs. For example, GitHub limits the number of results in a SARIF file. It allows a maximum of 25000 results per file but displays the first 5000 results ranked by severity. Refer to GitHub SARIF support for code scanning for the complete list of limitations with respect to SARIF files in GitHub Advanced Security.

Ensure that you meet the following prerequisites before exporting findings to GitHub Advanced Security:

GHAS SARIF exporter allows you to export the findings generated by Endor Labs in the SARIF format. See Understanding SARIF files for more information on the SARIF format and Endor-specific extensions.

You can create a GHAS SARIF exporter using the Endor Labs API.

Run the following command to create a GHAS SARIF exporter.

endorctl api create -n <namespace> -r Exporter -d '{
  "meta": {
    "name": "<exporter-name>"
  },
  "tenant_meta": {
    "namespace": "<namespace>"
  },
  "spec": {
    "exporter_type": "EXPORTER_TYPE_GHAS",
    "message_type_configs": [
      {
        "message_type": "MESSAGE_TYPE_FINDING",
        "message_export_format": "MESSAGE_EXPORT_FORMAT_SARIF"
      }
    ]
  },
  "propagate": true
}'

For example, to create a GHAS SARIF exporter named ghas-exporter in the namespace doe.deer, run the following command.

endorctl api create -n doe.deer -r Exporter -d '{
  "meta": {
    "name": "ghas-exporter"
  },
  "tenant_meta": {
    "namespace": "doe.deer"
  },
  "spec": {
    "exporter_type": "EXPORTER_TYPE_GHAS",
    "message_type_configs": [
      {
        "message_type": "MESSAGE_TYPE_FINDING",
        "message_export_format": "MESSAGE_EXPORT_FORMAT_SARIF"
      }
    ]
  },
  "propagate": true
}'

After creating the exporter, associate it with your scan profile. You can also set the scan profile as the default for your namespace so all projects use it automatically. See Scan profiles for more information.

  1. Select Settings from the left sidebar.
  2. Select Scan Profiles.
  3. Select the scan profile you want to configure and click Edit Scan Profile.
  4. Select your exporter under Exporters and click Save Scan Profile.

Associate your project with a scan profile to enable automatic export of scan data.

  1. Select Projects from the left sidebar and select the project you want to configure.
  2. Select Settings and select the scan profile you want to use under Scan Profile.

After the configuration is complete, your subsequent scans will export the findings in the SARIF format and upload them to GitHub. You can use the rescan ability to scan the project immediately instead of waiting for the next scheduled scan. See Rescan projects for more information.

If you have enabled pull request scans in your GitHub App, the GHAS SARIF exporter exports the findings for each pull request.

  1. Navigate to your GitHub repository.

  2. Select Security.

  3. Select Code scanning under Vulnerability Alerts.

  4. Select endorctl from the Tool filter to view findings from Endor Labs.

    View findings in GitHub

    You can use the search bar to filter the findings. You can also view findings for a specific branch and other filter criteria. You can also view the findings specific to a pull request if you have enabled pull request scans. You can filter the findings by the pull request number and view findings associated with the pull request. You can select a finding and view the commit history behind the finding.

    Filter findings in GitHub

  5. Select Campaigns to view and create security campaigns that coordinate remediation efforts across multiple repositories. See GitHub security campaign for more information.

When findings are exported to GHAS, Endor Labs includes finding tags and categories as searchable tags in the SARIF output. These tags appear in the GitHub code scanning interface, and you can filter and identify specific types of findings.

Endor Labs exports the following types of tags to GHAS:

  • Finding tags: System-defined attributes such as REACHABLE_FUNCTION, FIX_AVAILABLE, EXPLOITED, DIRECT, TRANSITIVE, and others. See Finding tags for the complete list.
  • Finding categories: Categories such as SCA, SAST, VULNERABILITY, SECRETS, CONTAINER, CICD, GHACTIONS, LICENSE_RISK, MALWARE, OPERATIONAL, SCPM, SECURITY, SUPPLY_CHAIN, and AI_MODELS. See Finding categories for the complete list.

You can use the search bar to filter findings by tags. Use the tag: prefix followed by the tag name to search for specific Endor Labs tags.

Available Filter Description
REACHABLE_FUNCTION Show findings with reachable vulnerable functions
FIX_AVAILABLE Show findings where a fix is available
EXPLOITED Show findings for actively exploited vulnerabilities (KEV)
DIRECT Show findings in direct dependencies
TRANSITIVE Show findings in transitive dependencies
CI_BLOCKER Show findings marked as blockers by action policies
SCA Show Software Composition Analysis findings
SAST Show SAST findings
SECRETS Show exposed secrets findings
VULNERABILITY Show vulnerability findings
CONTAINER Show container findings
CICD Show CI/CD pipeline findings
GHACTIONS Show GitHub Actions findings

You can combine multiple filters to narrow down your results. For example, to find reachable vulnerabilities with available fixes:

tag:REACHABLE_FUNCTION tag:FIX_AVAILABLE

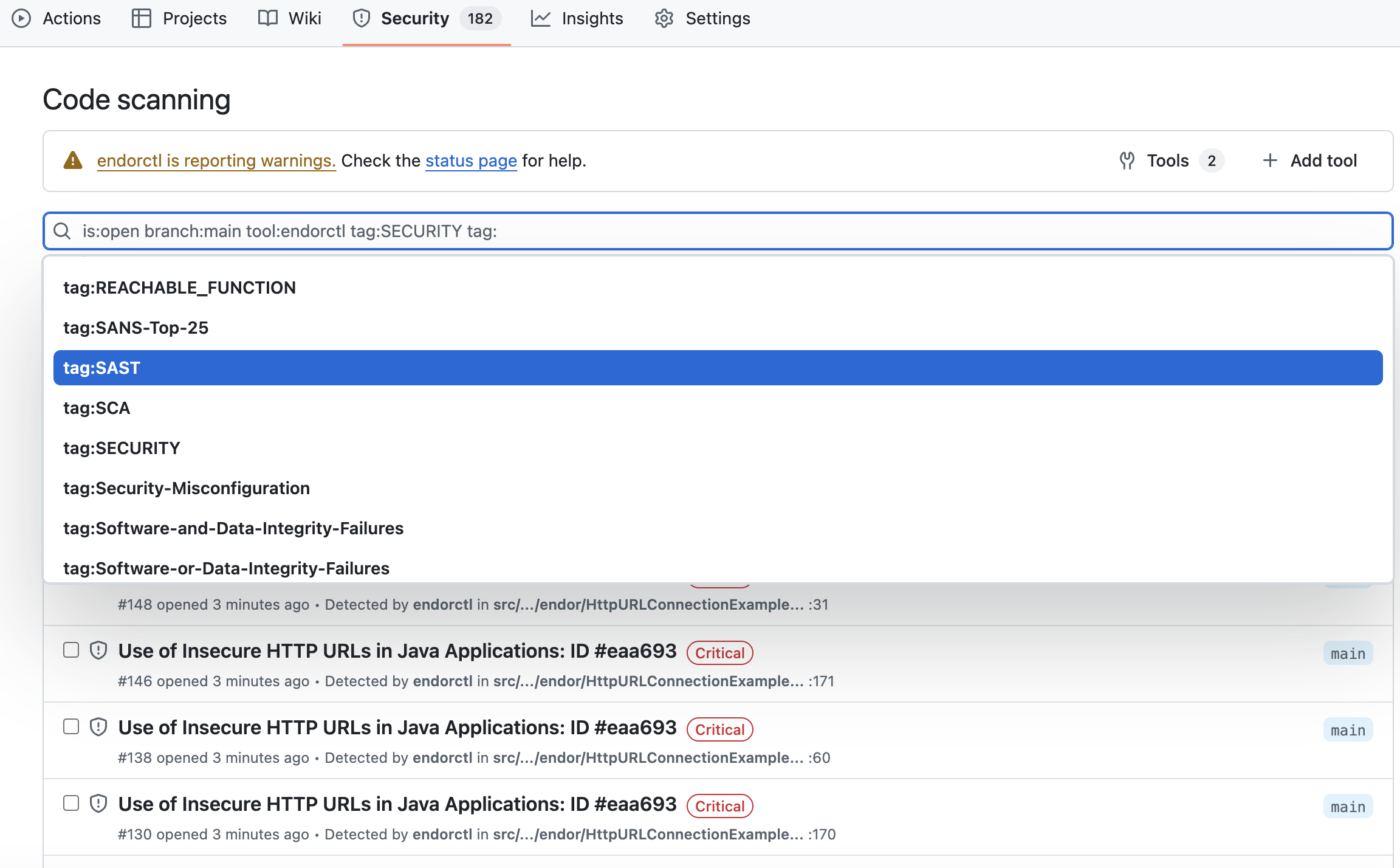

Filter by tags in GitHub

You can control which findings are exported to GHAS by using action policies. Only findings from projects within the scope of your configured action policies will be exported to GitHub Advanced Security.

To filter findings using action policies:

  1. Create an action policy that defines the criteria for findings you want to export, or use an existing action policy.
  2. Assign specific projects to the scope of the action policy you want to use.
  3. Run the following command to create a GHAS SARIF exporter that exports only findings from projects in the scope of your action policies.
Note
Use MESSAGE_TYPE_ADMISSION_POLICY_FINDING as the message_type to filter findings based on your action policies.
endorctl api create -n <namespace> -r Exporter -d '{
   "meta": {
     "name": "<exporter-name>"
   },
   "tenant_meta": {
     "namespace": "<namespace>"
   },
   "spec": {
     "exporter_type": "EXPORTER_TYPE_GHAS",
     "message_type_configs": [
       {
         "message_type": "MESSAGE_TYPE_ADMISSION_POLICY_FINDING",
         "message_export_format": "MESSAGE_EXPORT_FORMAT_SARIF"
       }
     ]
   },
   "propagate": true
 }'

You can list, update, and delete GHAS exporters using the Endor Labs API.

List exporters

Run the following command to list all exporters in your namespace:

endorctl api list --namespace=<namespace> --resource=Exporter
Update an exporter

Run the following command to update an existing exporter. Use the --field-mask parameter to specify the fields to update.

endorctl api update \
  --namespace=<namespace> \
  --resource=Exporter \
  --name=<exporter-name> \
  --field-mask "spec.message_type_configs" \
  --data '{
    "spec": {
      "message_type_configs": [
        {
          "message_type": "MESSAGE_TYPE_ADMISSION_POLICY_FINDING",
          "message_export_format": "MESSAGE_EXPORT_FORMAT_SARIF"
        }
      ]
    }
  }'
Delete an exporter
Note
You must disassociate the exporter from any linked scan profiles before deletion.

Run the following command to delete an exporter:

endorctl api delete --namespace=<namespace> --resource=Exporter --name=<exporter-name>
