Pull Request comments
PR comments are automated comments added to pull requests when Endor Labs detects policy violations or security issues during scans. When a PR is raised or updated, Endor Labs runs scans on the proposed changes and adds a comment if any violations are detected based on the configured action policies.
Types of PR comments
Endor Labs generates the following types of PR comments based on the nature of the findings in a scan:
- PR comments for Secrets: For findings of type
FINDING_CATEGORY_SECRETS
, Endor Labs adds a comment directly on the specific line where the secret is detected, using the line number provided in the finding object. These comments remain visible even if the secret is removed in a later scan. - PR comments for SCA: For SCA findings, Endor Labs adds a single comment that applies to the entire PR. It summarizes all findings from the policy evaluation results. The comment is updated with each scan run to reflect only the latest findings.
- PR comments for SAST: For findings of type
FINDING_CATEGORY_SAST
, Endor Labs adds a single comment that applies to the entire PR. It summarizes all SAST-related policy violations detected during the scan. The comment is updated with each run and reflects only the latest findings.
Enable PR comments
You can enable PR comments through one of the following methods.
After enabling PR comments, you must Configure an action policy to allow comments to be posted on pull requests.
GitHub App
You can enable PR comments during the initial setup of the GitHub App or GitHub App (Pro), or by editing an existing integration. Once enabled, Endor Labs automatically adds comments to pull requests when policy violations are detected.
GitHub Actions
You can configure GitHub actions to comment on PRs if there are any policy violations. Make sure that your GitHub action workflow includes the following configuration.
- The workflow must have a
with
clause including:enable_pr_comments
totrue
to publish new findings as review comments andgithub_token: ${{ secrets.GITHUB_TOKEN }}
. This token is automatically provisioned by GitHub when using GitHub actions. See GitHub configuration parameters for more information. - To grant Endor Labs the ability to comment on PRs you must include the permission
pull-requests: write
.
The following example configuration comments on PRs if a policy violation is detected.
- name: Endor Labs Scan PR to Default Branch
if: github.event_name == 'pull_request'
uses: endorlabs/github-action@v1 # Replace v1 with the commit SHA of the latest version of the GitHub Action for enhanced security
with:
namespace: 'example' # Update with your Endor Labs namespace
scan_summary_output_type: 'table'
scan_dependencies: true
scan_secrets: true
pr: true
enable_pr_comments: true
github_token: ${{ secrets.GITHUB_TOKEN }}
PR comments example
The main.yaml file in this sample repository contains the following configuration to enable PR comments.
name: Build Release
on:
pull_request:
branches: [main]
workflow_dispatch:
push:
branches: [main]
schedule:
- cron: "23 23 * * 0"
jobs:
build:
permissions:
pull-requests: write
security-events: write
contents: read
id-token: write
actions: read
runs-on: ubuntu-latest
env:
ENDOR_NAMESPACE: "endorlabs-hearts-github"
steps:
- name: Endor Labs Scan PR to Default Branch
if: github.event_name == 'pull_request'
uses: endorlabs/github-action@v1 # Replace v1 with the commit SHA of the latest version of the GitHub Action for enhanced security
with:
namespace: ${{ env.ENDOR_NAMESPACE }}
pr: true
enable_pr_comments: true
github_token: ${{ secrets.GITHUB_TOKEN }}
The PR #10 introduced a reachable vulnerability. Since the workflow has enable_pr_comments
set as true
, a comment is added to the PR on the policy violation.

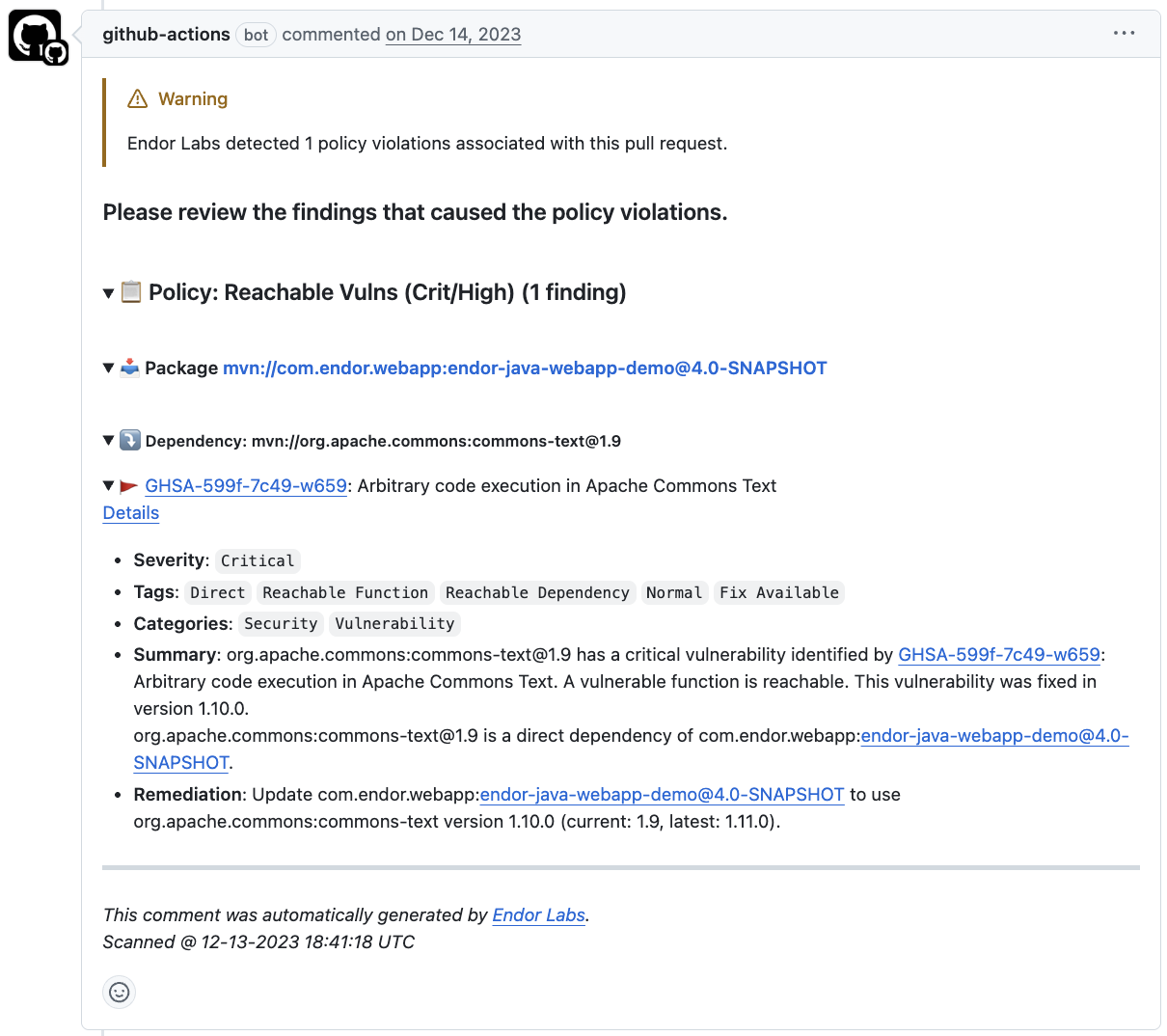

You can expand the comment to view the following details:
- Issue type: Describes the category of the security or policy violation
- Severity: Indicates how critical the issue is.
- Impacted files or dependencies: Specifies the files and packages affected by the issue.
- Remediation steps: Specifies the required fix to resolve the detected issue.
Endor Labs CLI
You can generate PR comments using the CLI by including the following flags in the endorctl scan
command.
endorctl scan \
--pr \
--enable-pr-comments \
--github-token <your-token> \
--github-pr-id <pull-request-id> \
--namespace <your-namespace>
Ensure the following:
- Set
--enable-pr-comments
totrue
to activate PR comment generation. - Use
--github-pr-id
to specify the pull request to comment on. - Set the
pull-requests
permission towrite
for the--github-token
.
Configure Action policy for PR comments
You must create an Action policy to receive comments on your pull request after enabling PR comments.
- Create an Action policy.
- Set the Branch Type to
PR
so the policy applies specifically to pull request scans. - Under Action, select Enforce Policy, then choose:
- Warn to post a comment without breaking the build.
- Break the Build to fail the build and block the pull request.
- Define the scope of the policy using tags. Only projects that match the specified tags will receive PR comments.
Customize PR comments templates
Endor Labs provides a default template with standard information that will be included in your pull requests as comments. You can use the default template, or you can choose to edit and customize this template to fit your organization’s specific requirements. You can also create custom templates using Go Templates.
- Sign in to Endor Labs and navigate to Manage>Integrations
- Look for GitHub PR comments under Notifications.
- Click Edit Template.
- Make the required changes and click Save Template.
- Click Restore to Default to revert the changes.
- Use the download icon in the top right corner to download this template.
- Use the copy icon to copy the information in the template.
Data model
To create custom templates for PR comments, you must understand the data supplied to the template.
See the following protobuf specification for the GithubCommentData
message that this template uses.
syntax = "proto3";
package internal.endor.ai.endor.v1;
import "google/protobuf/wrappers.proto";
import "protoc-gen-openapiv2/options/annotations.proto";
import "spec/internal/endor/v1/common.proto";
import "spec/internal/endor/v1/finding.proto";
import "spec/internal/endor/v1/package_version.proto";
option go_package = "github.com/endorlabs/monorepo/src/golang/spec/internal.endor.ai/endor/v1";
option java_package = "ai.endor.internal.spec";
// The list of finding UUIDs.
message FindingUuids {
repeated string uuids = 1;
}
// The map of dependency name to findings.
message DependencyToFindings {
map<string, FindingUuids> dependency_to_findings = 1;
}
// The map of PackageVersion UUID to DependencyToFindings.
message PackageToDependencies {
map<string, DependencyToFindings> package_to_dependencies = 1;
}
message GithubCommentData {
// The header of the PR comment. Identifies the PR comment published by Endor Labs.
// It should always be at top of the template.
google.protobuf.StringValue comment_header = 1;
// The footer of the PR comment.
google.protobuf.StringValue comment_footer = 2;
// The map of finding UUID to finding object.
map<string, internal.endor.ai.endor.v1.Finding> findings_map = 3;
// The map of policy UUID to policy name.
// This will contain only the policies that are triggered or violated.
map<string, string> policies_map = 4;
// The map of policy UUID to the list of finding UUIDs.
map<string, FindingUuids> policy_findings_map = 5;
// The map of PackageVersion UUID to PackageVersion object.
map<string, internal.endor.ai.endor.v1.PackageVersion> package_versions_map = 6;
// The data needs to be grouped as follows:
//
// - Policy 1
// - Package 1
// - Dependency Package 1
// - Finding 1
// - Finding 2
// - Dependency Package 2
// - Finding 3
// - Finding 4
// - Package 2
// - Dependency Package 1
// - Finding 1
// - Finding 5
// - Policy 2
// ....
//
// Map 0[PolicyUUID]/Map 1[PkgVerUUID]/Map 2 [Dep Names]/Finding UUID
map<string, PackageToDependencies> data_map = 7;
google.protobuf.StringValue api_endpoint = 8;
}
// Data structure for security review comments on pull requests.
message SecurityReviewCommentData {
option (internal.endor.ai.endor.v1.parent_kinds) = {};
option (grpc.gateway.protoc_gen_openapiv2.options.openapiv2_schema) = {
json_schema: {
extensions: {
key: "x-internal";
value {bool_value: true}
}
}
};
// Represents a specific security risk identified in the code review.
message SecurityRisk {
// Icon representing the severity level of the risk.
google.protobuf.StringValue severity_icon = 1;
// The category or type of the security risk.
google.protobuf.StringValue category = 2;
// The title or name of the security risk.
google.protobuf.StringValue title = 3;
// Link to the specific code location where the risk was identified.
google.protobuf.StringValue code_link = 4;
// Detailed description of the security risk and potential impact.
google.protobuf.StringValue description = 5;
// The level of the security risk.
google.protobuf.StringValue level = 6;
// The type of impact (improvement or regression).
google.protobuf.StringValue impact_type = 7;
}
// The header of the security review comment.
// It should always be at the top of the template.
google.protobuf.StringValue comment_header = 1;
// The footer of the security review comment.
google.protobuf.StringValue comment_footer = 2;
// A description of the changes made in the pull request.
google.protobuf.StringValue changes_description = 3;
// A general security assessment description.
google.protobuf.StringValue security_description = 4;
// The list of identified security risks in the pull request.
repeated SecurityRisk security_risks = 5;
}
To understand Finding and PackageVersion definitions that are used in this protobuf specification, see:
See the following specification to understand the additional functions that are also available. You can access these functions by using their corresponding keys.
// FuncMap contains the additional functions that are available to GithubCommentTemplate.
var FuncMap = template.FuncMap{
"now": toTime, // 'now' gives the current time
// 'enumToString' coverts the enums for finding level, finding category and finding tags to string
"enumToString": enumToString,
// 'getPackageVersionURL' returns the URL for a given PackageVersion
"getPackageVersionURL": func(apiURL string, packageVersion *endorpb.PackageVersion) string {
result, err := common.GetPackageVersionURL(apiURL, packageVersion)
if err != nil {
return ""
}
return result
},
// 'getFindingURL' returns the URL for a given Finding
"getFindingURL": func(apiURL string, finding *endorpb.Finding) string {
result, err := common.GetFindingURL(apiURL, finding)
if err != nil {
return ""
}
return result
},
// 'add' returns the sum of two integers
"add": func(n int, incr int) int {
return n + incr
},
// 'getOtherFindingsPackageMarker' returns the key for _findingsWithNoPackages for lookup in DataMap
// Not all findings are associated with a PackageVersion, such findings are grouped under this key
// in the DataMap
"getOtherFindingsPackageMarker": func() string { return _findingsWithNoPackages },
// 'getOtherFindingsDependencyMarker' returns the key for _findingsWithNoDeps for lookup in DataMap
// Not all findings are associated with a dependency, such findings are grouped under this key
// in the DataMap
"getOtherFindingsDependencyMarker": func() string { return _findingsWithNoDeps },
// 'getFindingsCountString' returns a string with number of findings, example - "5 findings"
"getFindingsCountString": func(dataMap *endorpb.PackageToDependencies) string {
count := 0
for _, depMap := range dataMap.PackageToDependencies {
for _, findingMap := range depMap.DependencyToFindings {
count += len(findingMap.Uuids)
}
}
findingsStr := "findings"
if count == 1 {
findingsStr = "finding"
}
return fmt.Sprintf("%d %s", count, findingsStr)
},
// 'hasFindingCategory' checks if a finding has a specific category
"hasFindingCategory": func(finding *endorpb.Finding, targetCategory string) bool {
for _, category := range finding.GetSpec().GetFindingCategories() {
if enumToString(category) == targetCategory {
return true
}
}
return false
},
// 'isNotEmptyString' checks if a string is not empty
"isNotEmptyString": func(value string) bool {
return value != ""
},
// 'getCustomLocation' extracts the location from Custom field
"getCustomLocation": func(finding *endorpb.Finding) string {
return getCustomFieldValue(finding, "location")
},
// 'getCustomCodeSnippet' extracts the code snippet from Custom field
"getCustomCodeSnippet": func(finding *endorpb.Finding) string {
return getCustomFieldValue(finding, "code_snippet")
},
"fixBackticks": fixUnclosedBackticks,
}
